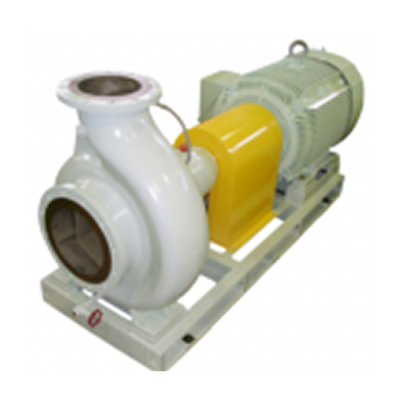

CPC Pump

Categories: Pump Product List

Features

Specification

Application

The highly efficient design enables very economical operation with a low running cost.
High quality materials and structural designs are employed to meet specification requirements for a variety of applications, including chemical and petrochemical industries, oil refining, general industries, water desalination, and high temperature heating equipment applications.
Cover a wide spectrum of specifications, such as high head, high capacity, high pressure, low temperature, and high temperature.
Each component is designed with a special focus on compatibilit, offering ease of maintenance.
Stock management with an excellent quality control system enables short pump delivery times.
The suction and discharge nozzles are arranged end-top to resist piping loads.
Intake diameter is designed larger than discharge diameter to maximize the suction performance.
A back pull-out structure allows disassembly of the pump when coupled with spacers, without dismantling the main piping and the motor.
Center line support type volute casing is also available.
Thrust is balanced using back vanes; the ball bearings only receive residual thrust.
Roller bearings with oil bath are used with a constant level oiler and there is also a water cooling option.
Combinations of heating jackets and cooling jackets are available, offering choices for the optimal configuration for various liquid types and liquid temperatures.
Gland packing or Torishima mechanical seal is available for the shaft seal, both with the proven performance with various liquid types.
JIS-compliant standard flanges are employed, with other standards optionally supported.
Configurations are also available in which the shaft is not directly in contact with pump liquid.
